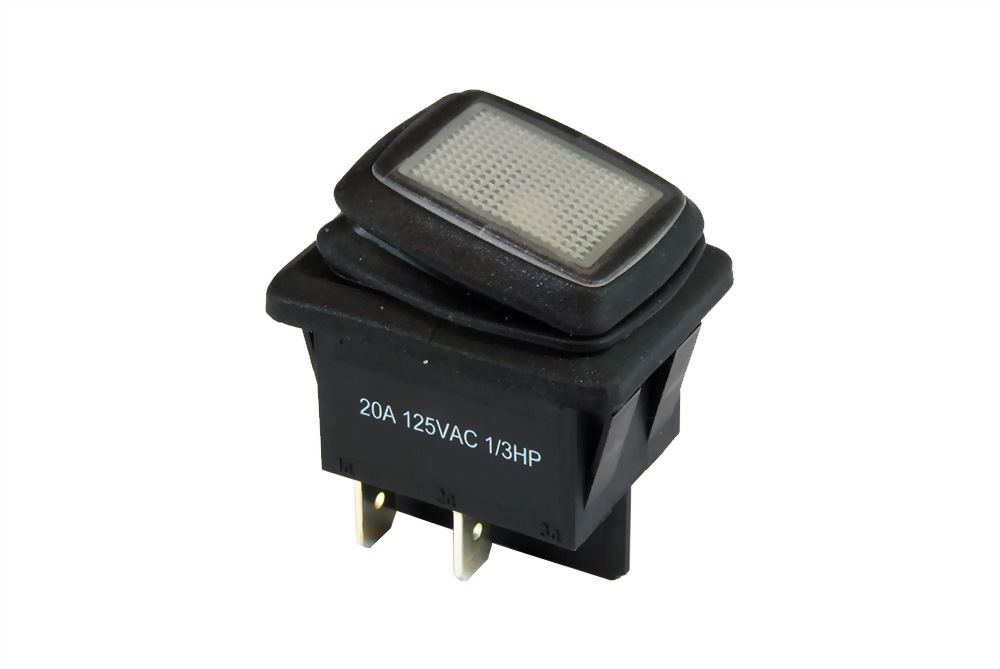

Waterproof Rocker Switch
SPECIFICATION:
Rating: 20A 125V / 10A 250V AC
20A 14V DC
Mounting Hole: 30.4 x 22.2 mm
Terminal Type: #250 Terminal (6.3mm)
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 1,500 V 1 Minute
Operating Temperature: -25℃ ~ +85℃
FUNCTION:
A8 = ON - OFF 4P
A8L = ON - OFF 4P with LED
C8 = ON - ON 6P
C8L = ON - ON 6P with LED
Approvals: RoHS, UL, ENEC, IP65
