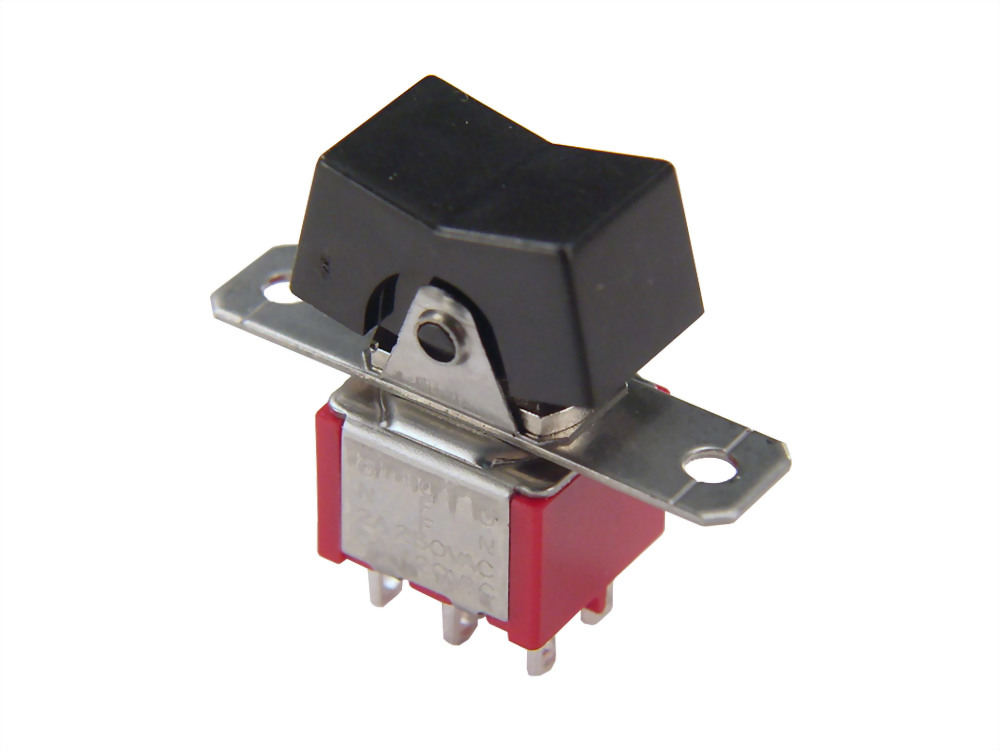

• ROCKER SWITCH (SR2-□□-R1 Series)

ROCKER SWITCH (SR2-□□-R1 Series)

SPECIFICATION:
Rating: 5A 120V AC / 28V DC
Pitch: 4.7mm
Dieletric Strength: AC 1,000 V 1 Minute
Insulation Resistance: 1,000 MΩ Mim.
Contact Resistance: 10MΩ Max.
Operating Temperature: -30oC ~ +130oC
Electrical Life: 50,000 Cycles
FUNCTION:
□ □ = 01: on-on
= 02: on-(on)
= 03: on-off-on
= 04: (on)-off-(on)
= 05: on-off-(on)
( ) = Momentary
Approvals : RoHS
Model : SR2-□□-R1 Series

SPECIFICATION:

Rating: 5A 120V AC / 28V DC

Pitch: 4.7mm

Dieletric Strength: AC 1,000 V 1 Minute

Insulation Resistance: 1,000 MΩ Mim.

Contact Resistance: 10MΩ Max.

Operating Temperature: -30oC ~ +130oC

Electrical Life: 50,000 Cycles

FUNCTION:

□ □  = 01: on-on

         = 02: on-(on)

         = 03: on-off-on

         = 04: (on)-off-(on)

         = 05: on-off-(on)

( ) = Momentary


Approvals : RoHS
