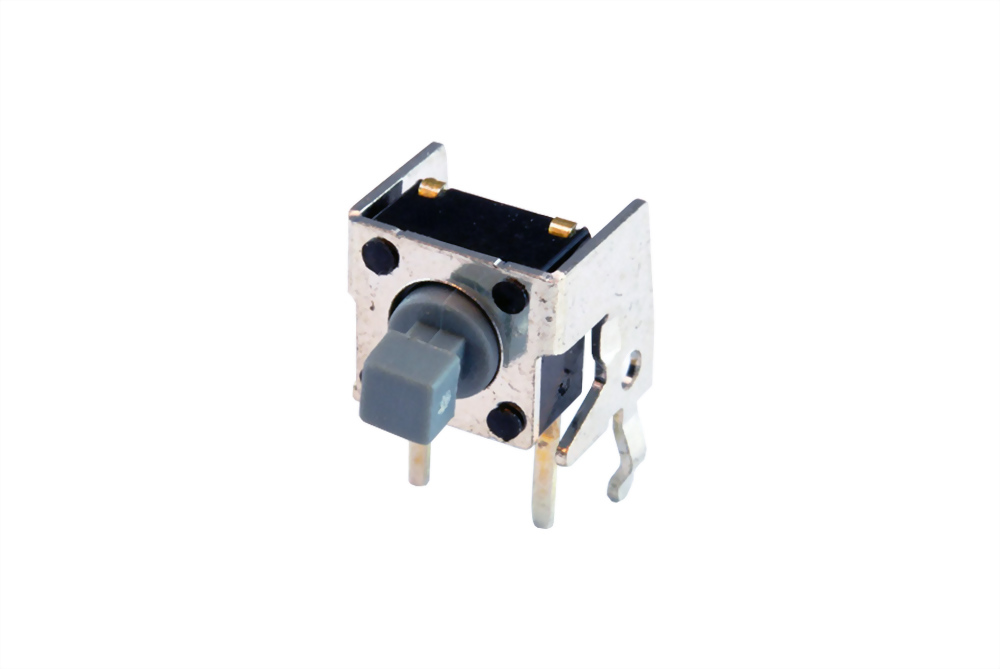

• Takt-Schalter (TS-A5PV)

Takt-Schalter (TS-A5PV)

SPECIFICATION:
Rating: 50mA 12V DC
SIZE: 7.5 x 7.1 x 3.5 mm
Operating force: 160gf , 250gf
Dielectric strength: AC 250 V 1 minute
Insulation resistance: 100 MΩ DC 250 V
Contact resistance: 100 MΩ Min.
Mechanical Life: 100,000 Cycles
Electrical Life: 100,000 Cycles
Operating Temperature: -20oC ~ +70oC
Approvals: RoHS
Model : TS-A5PV

SPECIFICATION:

Rating: 50mA 12V DC

SIZE: 7.5 x 7.1 x 3.5 mm

Operating force: 160gf , 250gf

Dielectric strength: AC 250 V 1 minute

Insulation resistance: 100 MΩ DC 250 V

Contact resistance: 100 MΩ Min.

Mechanical Life: 100,000 Cycles

Electrical Life: 100,000 Cycles

Operating Temperature: -20oC ~ +70oC


Approvals: RoHS
