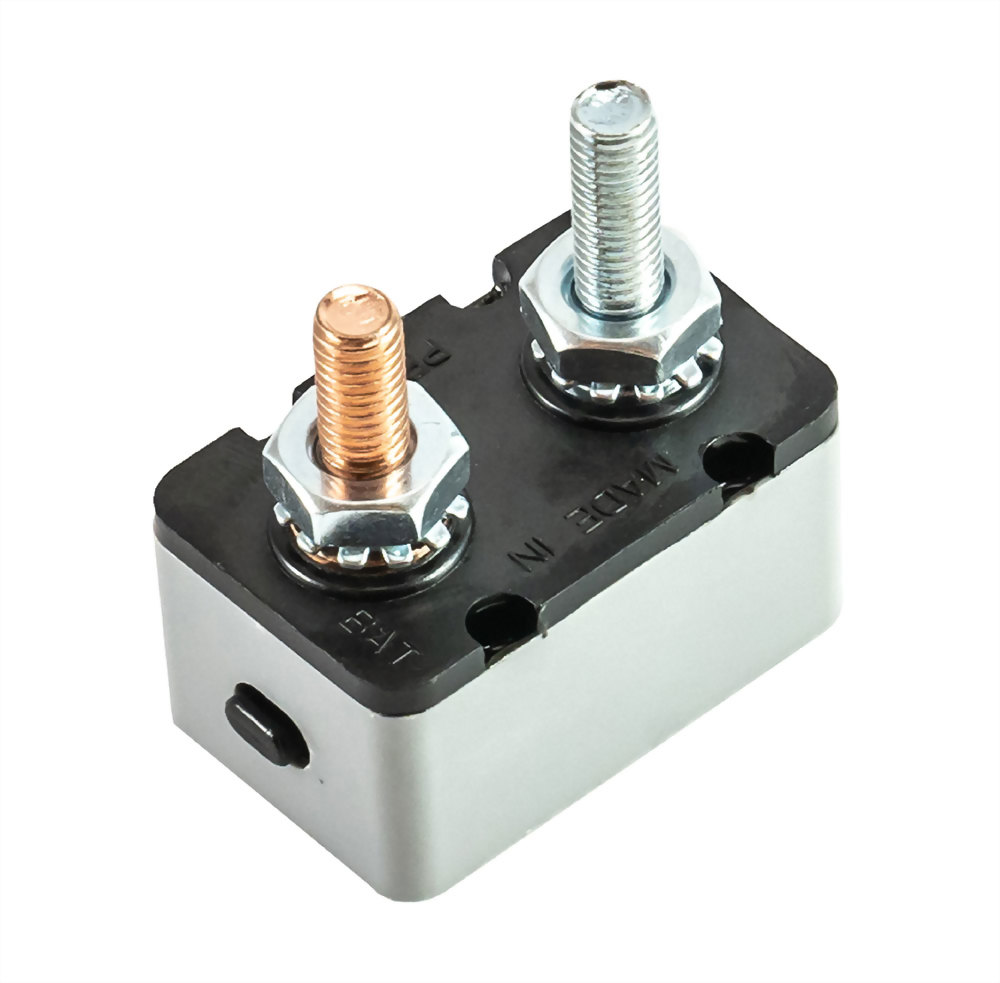

SPECIFICATIONS

Applications: Battery chargers, trucks, buses, RV’s, trolling motors, etc.

Rating: 5-50A, 14VDC; 28VDC

Interrupt Rating: 1.0kA @ 12VDC

Branch Circuit Protection: 1.0kA @ 12VDC

Operating Temperature Rating: -20° C to 85° C

Storage Temperature Rating: -40° C to 100° C

Materials: Black UL-Rated thermoplastic

Marking: Custom marking available. Consult factory for options.

Termination: #10-32 thread and quick-connect options available.

Torque Rating: 2.7Nm , max.

Mounting Torque Rating: Plastic cover - 1.7Nm ; Metal cover - 3.4Nm.

Ingress Protection Rating: IP66 on plastic cover version only (except for terminals).

Compliances: SAE J553; SAE J1171 (consult factory for Ignition Protection ratings).

Calibration (at 25℃)

300% of rated current:2.5-7.5 sec
200% of rated current: <60sec
150% of rated current: Hold <30min
100% of rated current: Hold, No Trip
