• Rocker-Schalter (SR13-226B)

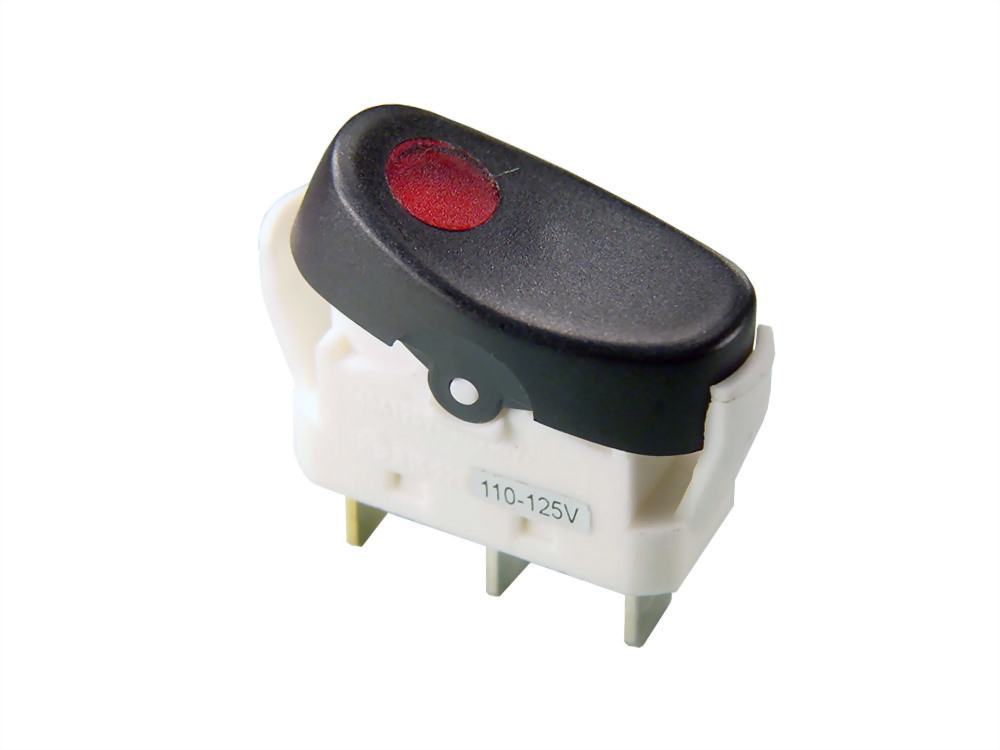

ROCKER SWITCH (SR13-226B)

SPECIFICATION:
Rating: 16A 125V / 10A 250V AC
Mounting Hole: 30.5 x 13.6 mm
Function: ON - OFF with Lamp
Terminal Type: #250 Terminal (6.3mm)
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 1,500 V 1 Minute
Approvals : RoHS,CUL,ENEC10,VDE,CQC
Model : SR13-226B

SPECIFICATION:

Rating: 16A 125V / 10A 250V AC

Mounting Hole: 30.5 x 13.6 mm

Function: ON - OFF with Lamp

Terminal Type: #250 Terminal (6.3mm)

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute


Approvals : RoHS,CUL,ENEC10,VDE,CQC
