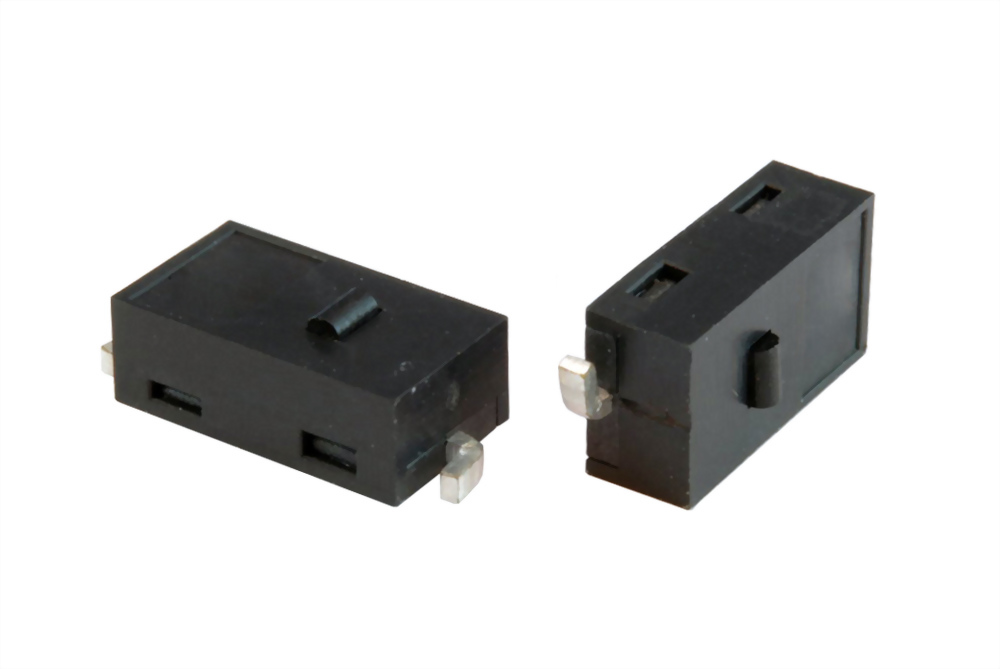

• Micro Switch (SDS030C-00M)

Micro Switch (SDS030C-00M)

SPECIFICATION:
Rating: 0.1A 48V DC / 0.1A 125V AC
SIZE: 8.6 x 4.8 x 3.5 mm
Operating Force: 70g
Withatand Voltage: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 300MΩ
Operating Temperature: -25oC ~ +80oC
Mechanical Life: 3,000,000 Cycles
Electrical Life: 3,000,000 Cycles
Model : SDS030C-00M

SPECIFICATION:

Rating: 0.1A 48V DC / 0.1A 125V AC

SIZE: 8.6 x 4.8 x 3.5 mm

Operating Force: 70g

Withatand Voltage: AC 250 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 250V DC

Contact Resistance: 300MΩ

Operating Temperature: -25oC ~ +80oC

Mechanical Life: 3,000,000 Cycles

Electrical Life: 3,000,000 Cycles


Approvals: RoHS
