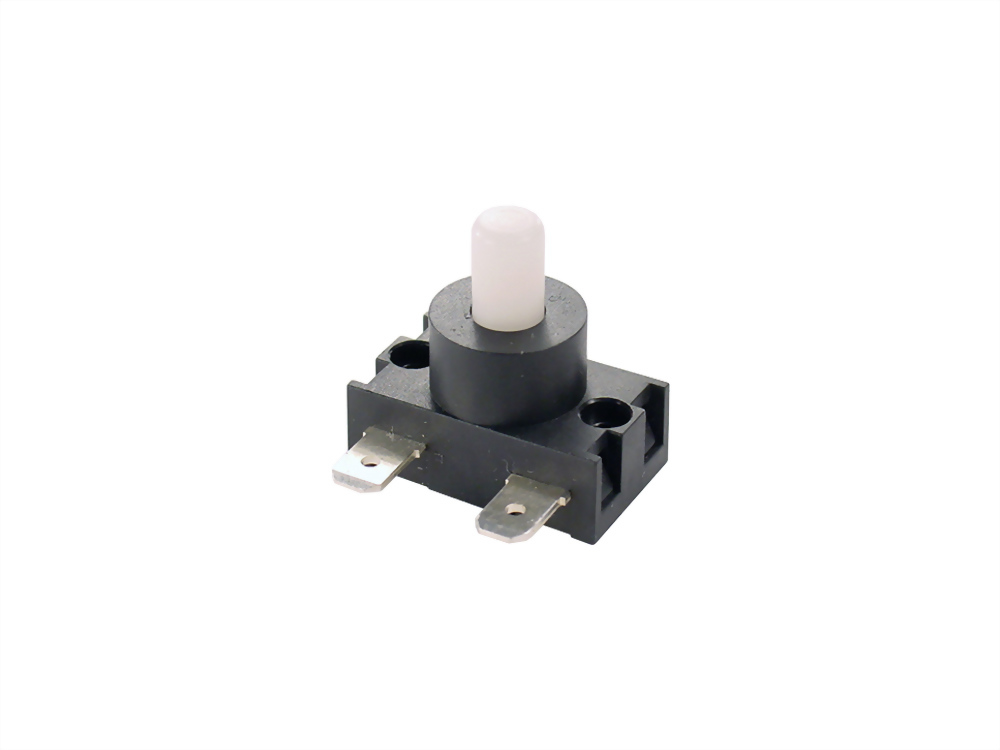

Push-Schalter (SP8-10S-□-X)

SPECIFICATION:
Rating: 10A 125V AC
OF: Max.860g
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 1,000 V 1 Minute
Operating Temperature: -40oC ~ +85oC
Electrical Life: 10,000 cycles
FUNCTION:
□ = 0 : Non Lock
= 1 : Lock
X = A : Solder Terminal
B : Quick Connect Terminal
Approvals : RoHS,UL,CSA,VDE,CEBEC,SEMKO
Model : SP8-10S-□-X

SPECIFICATION:

Rating: 10A 125V AC

OF: Max.860g

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 1,000 V 1 Minute

Operating Temperature: -40oC ~ +85oC

Electrical Life: 10,000 cycles

FUNCTION:

□ = 0 : Non Lock

   = 1 : Lock

X = A : Solder Terminal

      B : Quick Connect Terminal


Approvals : RoHS,UL,CSA,VDE,CEBEC,SEMKO
