WATERPROOF SWITCH ( IP65~67 ) (SR-2893-A2-G4-1L (IP67))

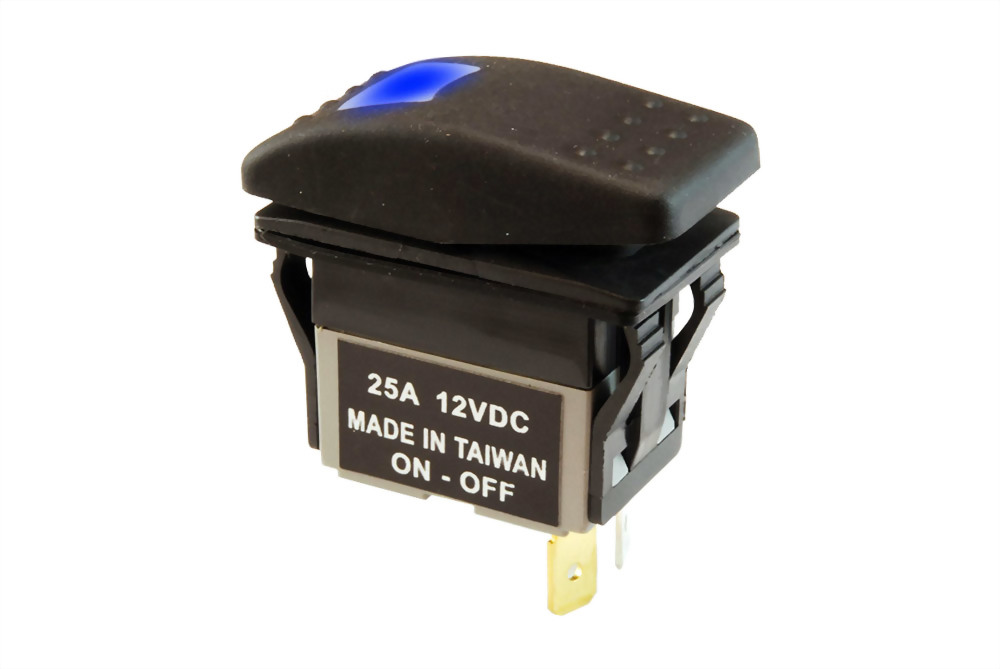

Waterproof Rocker Switch
SPECIFICATION:
Rating: 25A 12V DC / 20A 125V AC
Mounting Hole: 37.0 x 21.1mm
SPST ON-OFF 2PIN
With One Lamp
Dielectric Strength: AC 1,500 V 1 Minute
Insulation Resistance: 10 MΩ Mim. 4V DC
Contact Resistance: 50MΩ Max.
Mechanical Life: 120,000 Cycles
Approvals: RoHS, UL, IP67
Model : SR-2893-A2-G4-1L (IP67)
Waterproof Rocker Switch

SPECIFICATION:

Rating: 25A 12V DC / 20A 125V AC

Mounting Hole: 37.0 x 21.1mm

SPST ON-OFF 2PIN

With One Lamp

Dielectric Strength: AC 1,500 V 1 Minute

Insulation Resistance: 10 MΩ Mim. 4V DC

Contact Resistance: 50MΩ Max.

Mechanical Life: 120,000 Cycles


Approvals: RoHS, UL, IP67
