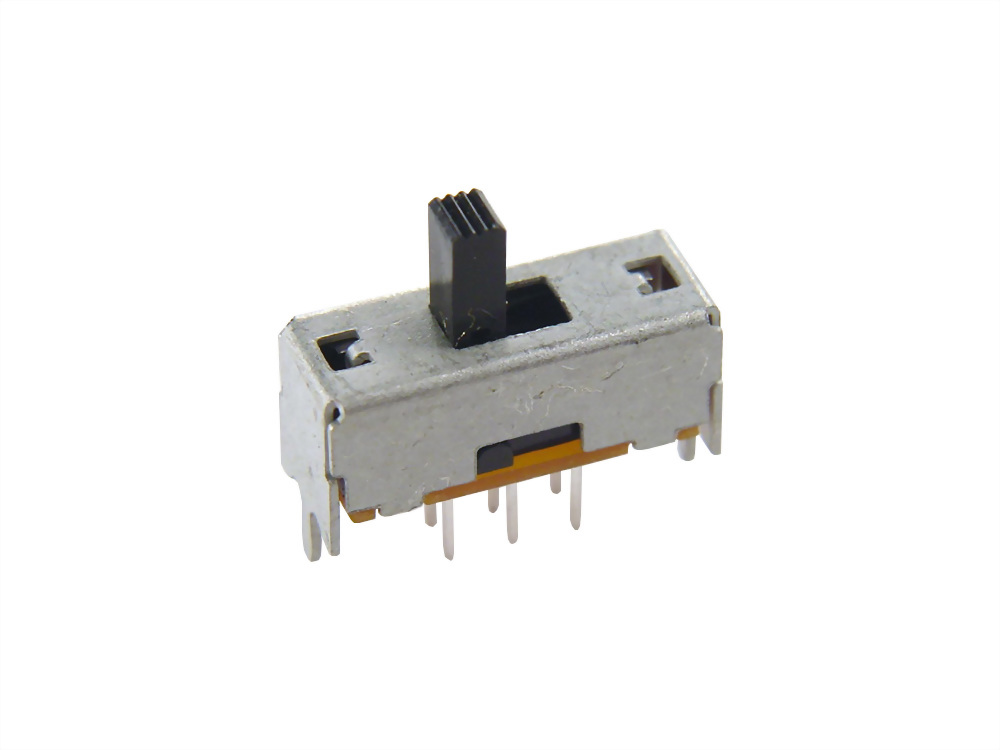

• Slide-Schalter (SLS-2251)

Slide-Schalter (SLS-2251)

SPECIFICATION:
Rating: 0.3A 50V DC
SIZE: 18.5(L) x 7.0(W) mm
2P2T , RG = 2~9 mm
Travel: 3 mm
Terminal Pitch: 3 mm
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 30MΩ Max.
Operating Temperature: -16oC ~ +60oC
Life Test: 10,000 Cycles
Approvals : RoHS
Model : SLS-2251

SPECIFICATION:

Rating: 0.3A 50V DC

SIZE: 18.5(L) x 7.0(W) mm

2P2T , RG = 2~9 mm

Travel: 3 mm

Terminal Pitch: 3 mm

Dielectric Strength: AC 500 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 30MΩ Max.

Operating Temperature: -16oC ~ +60oC

Life Test: 10,000 Cycles



Approvals : RoHS
