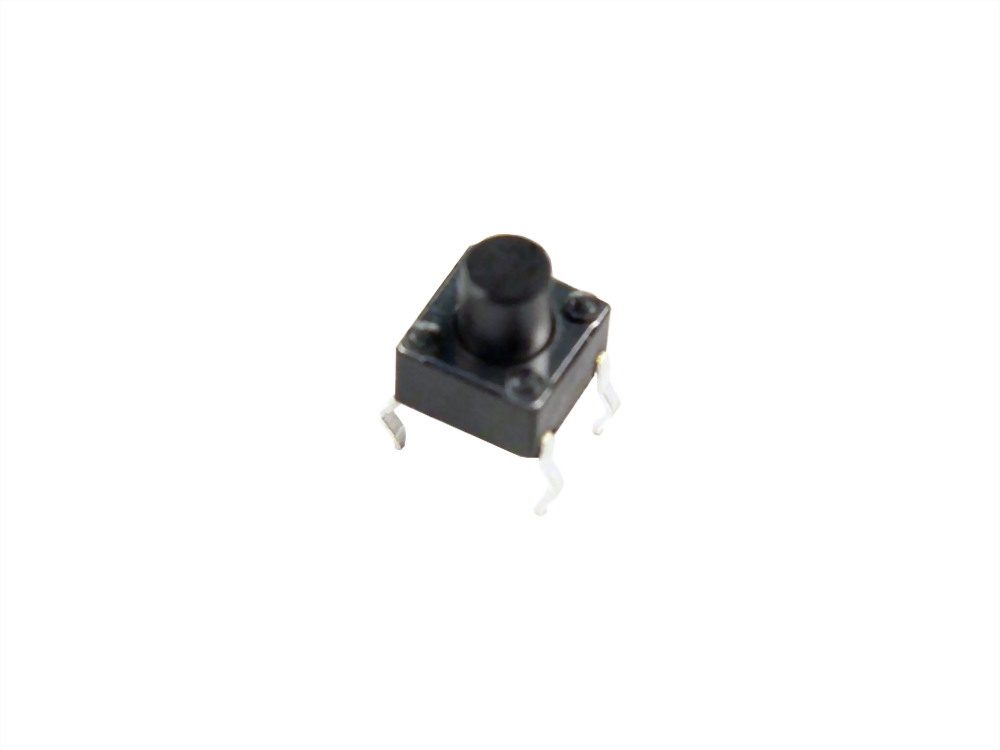

• Takt-Schalter (TS-A□PS)

Takt-Schalter (TS-A□PS)

SPECIFICATION:
Rating: 50mA 12V DC
SIZE: 6.0 x 6.0 mm
Operating Force: 100 / 130 / 160 / 250g
Contact Resistance: 100MΩ Max.
Life Tese: 100,000 cycles
Function:
□ = L (mm)
1 = 4.3 mm 5-1 = 8.0 mm 8-1 = 13.5 mm
2 = 5.0 mm 6 = 7.3 mm 9 = 17.0 mm
2-1 = 6.0 mm 6-4 = 11.0 mm 10 = 13.0 mm
3 = 7.0 mm 7 = 12.5 mm 10-2 =15.0mm
4 = 9.5 mm 8 = 12.0 mm
Approvals: RoHS
Model : TS-A□PS

SPECIFICATION:

Rating: 50mA 12V DC

SIZE: 6.0 x 6.0 mm

Operating Force: 100 / 130 / 160 / 250g

Contact Resistance: 100MΩ Max.

Life Tese: 100,000 cycles

Function:

□ = L (mm)

1  = 4.3 mm        5-1 = 8.0 mm        8-1 = 13.5 mm

2  = 5.0 mm        6    = 7.3 mm        9 = 17.0 mm

2-1  = 6.0 mm     6-4  = 11.0 mm     10 = 13.0 mm

3  = 7.0 mm        7     = 12.5 mm     10-2 =15.0mm

4  = 9.5 mm        8     = 12.0 mm


Approvals: RoHS
