• Toggle-Schalter (SPU-704-H□)

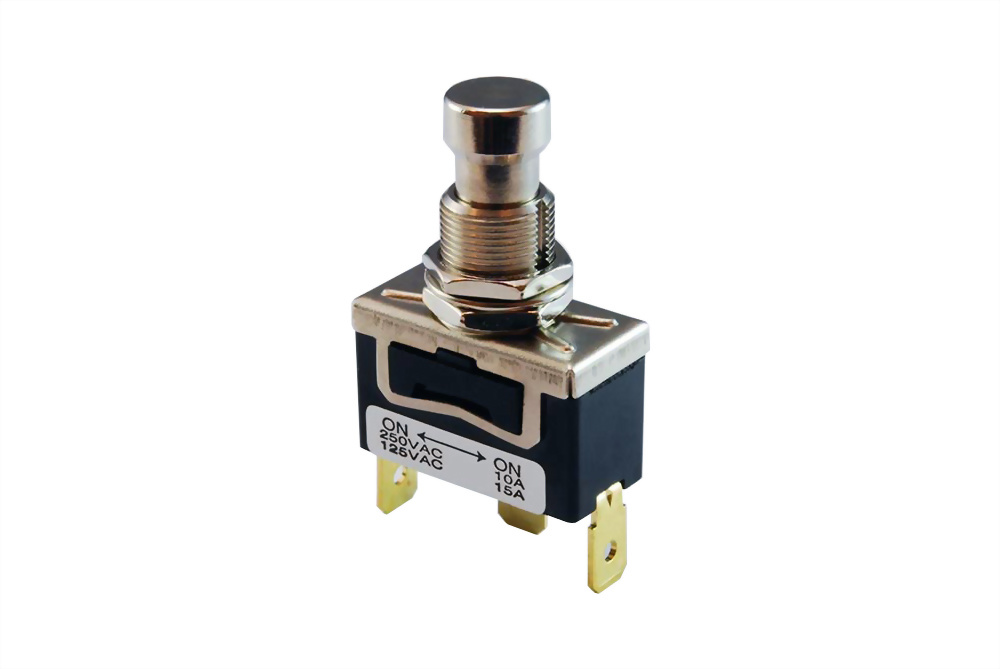

PUSH SWITCH (SPU-704-H□)

SPECIFICATION:
Rating: 15A 125V AC / 10A 250V AC
Vithstand Voltage: AC 1500 V 1 Minute
Insulation Resistance: 200 MΩ Mim. 500V DC
Contact Resistance: 20MΩ Max.
FUNCTION:
SPDT 3PINS
PU-704: ON-OFF
PU-704-1A: (ON)-ON
□=Terminal Type
H1=Screw Type (7.0mm) H4=187" (4.8mm)
H2=Screw Type (6.8mm) H5=250" (6.3mm)
H3=Solder Type
Approvals : RoHS,UL
Model : SPU-704-H□

SPECIFICATION:

Rating: 15A 125V AC / 10A 250V AC

Vithstand Voltage: AC 1500 V 1 Minute

Insulation Resistance: 200 MΩ Mim. 500V DC

Contact Resistance: 20MΩ Max.


FUNCTION:

SPDT 3PINS

PU-704: ON-OFF

PU-704-1A: (ON)-ON

=Terminal Type

H1=Screw Type (7.0mm)   H4=187" (4.8mm)

H2=Screw Type (6.8mm)   H5=250" (6.3mm)

H3=Solder Type




Approvals : RoHS,UL
