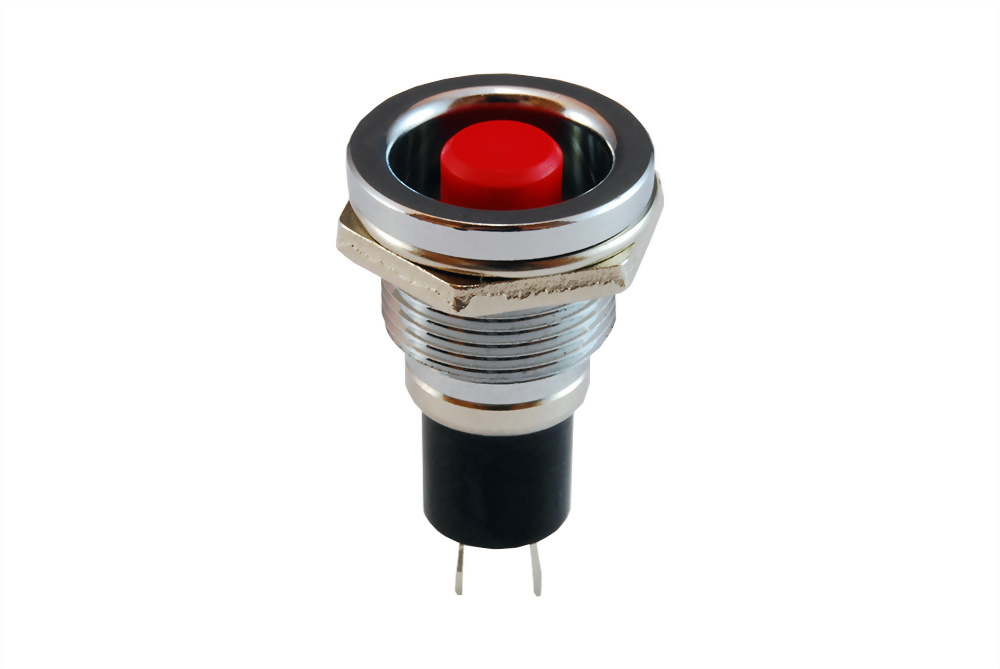

Push-Schalter (SPF003)

SPECIFICATION:
Rating: 1A 125V AC / 0.5A 250V AC
Mounting Hole: Ø12mm
Insulation Resistance: 100MΩ Mim. 500V DC
Contact Resistance: 10MΩ Max.
Dielectric Strength: AC 1,000 V 1 Minute
FUNCTION:
F003-A = Push-ON (Pin with silver plating)
F003-B = Push-OFF (Pin with silver plating)
F003-3 = ON-OFF (Pin with gold plating)
Push Button Color: Black & Red
Approvals : RoHS
Model : SPF003

SPECIFICATION:

Rating: 1A 125V AC / 0.5A 250V AC

Mounting Hole: Ø12mm

Insulation Resistance: 100MΩ Mim. 500V DC

Contact Resistance: 10MΩ Max.

Dielectric Strength: AC 1,000 V 1 Minute

FUNCTION:

F003-A = Push-ON   (Pin with silver plating)


F003-B = Push-OFF  (Pin with silver plating)


F003-3 = ON-OFF    (Pin with gold plating)

Push Button Color: Black & Red



Approvals : RoHS
