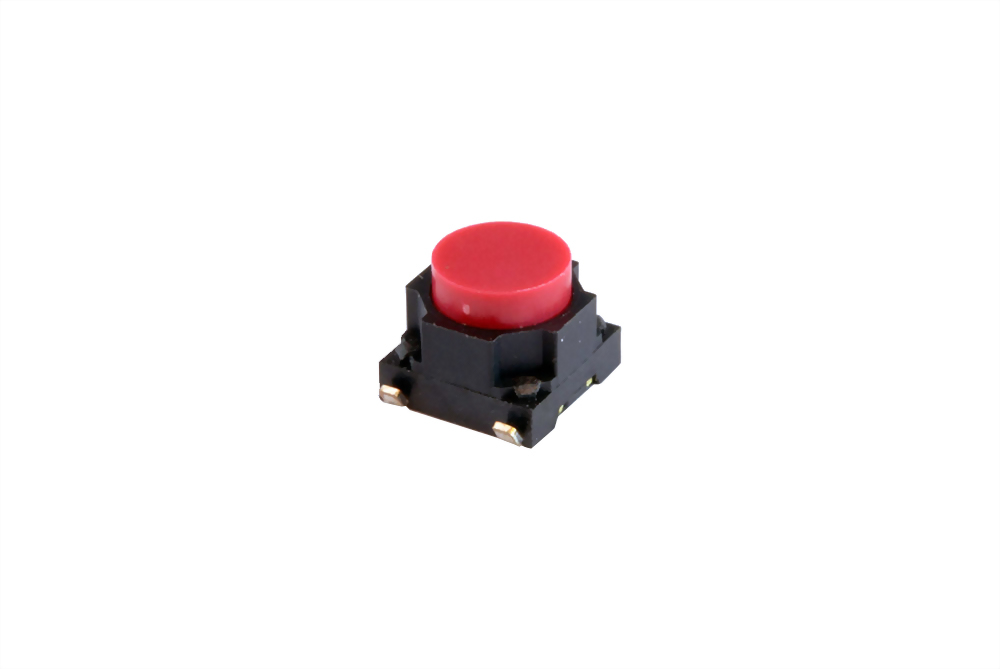

• Takt-Schalter (SLTL-613)

Takt-Schalter (SLTL-613)

SPECIFICATION:
Rating: 50mA 12V DC
Long Travel SMD Type
SIZE: 6.0 x 6.0 x 5.0 mm
Operating force: 200 / 350 gf
Dielectric strength: AC 300 V 1 minute
Insulation resistance: 100 MΩ 500V DC
Contact resistance: 100 MΩ Min.
Mechanical Life: 100,000 Cycles ( 200gf)
30,000 Cycles (350gf)
Operating temperature: -40oC ~ +85oC
Approvals: RoHS
Model : SLTL-613

SPECIFICATION:

Rating: 50mA 12V DC

Long Travel SMD Type

SIZE: 6.0 x 6.0 x 5.0 mm

Operating force: 200 / 350 gf

Dielectric strength: AC 300 V 1 minute

Insulation resistance: 100 MΩ 500V DC

Contact resistance: 100 MΩ Min.

Mechanical Life: 100,000 Cycles ( 200gf)

                         30,000 Cycles (350gf)

Operating temperature: -40oC ~ +85oC


Approvals: RoHS
